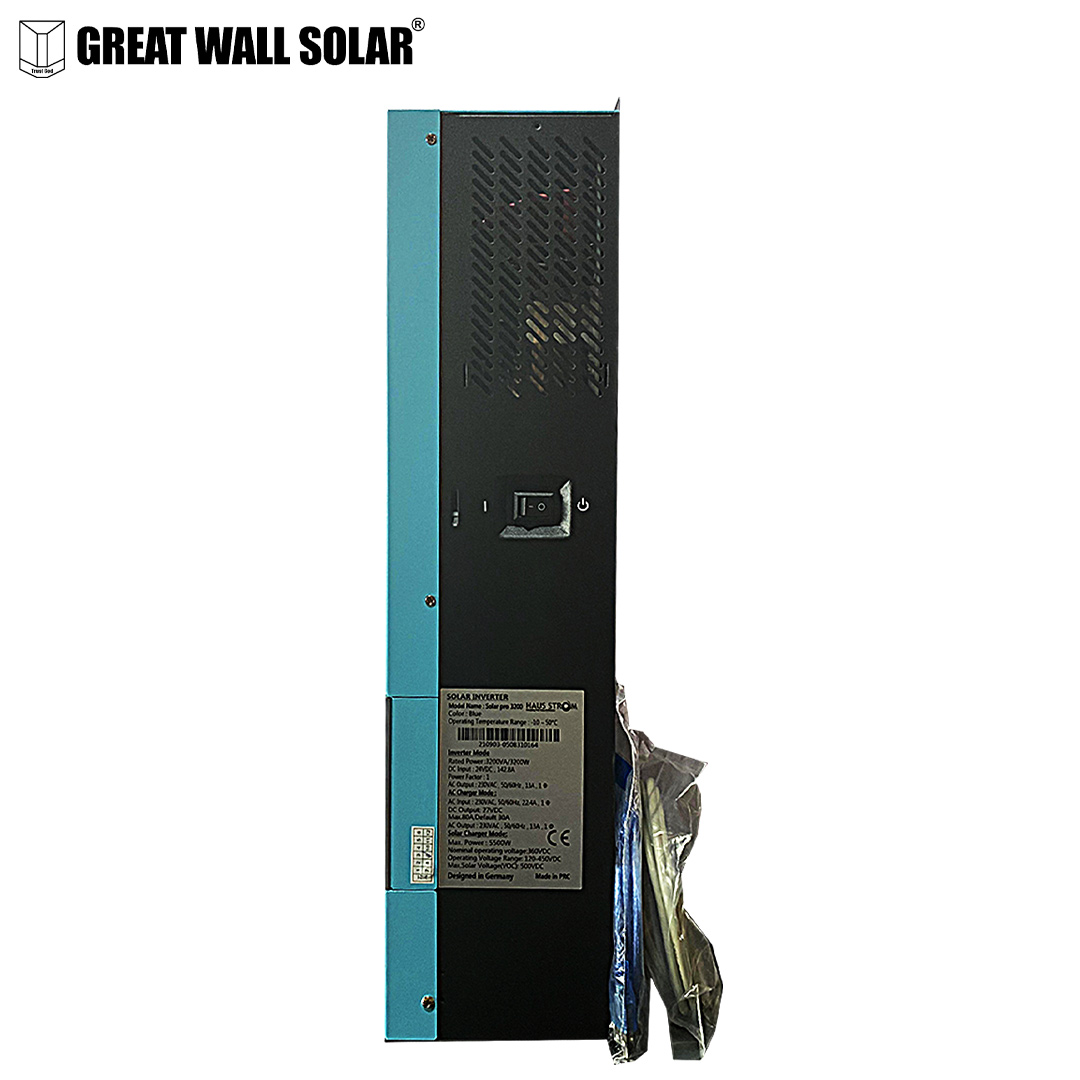

High Frequency MPPT Solar Inverter
Anti-Dust Kit:
After installing this anti-dust kit, inverter will automatically detect this kit and activate internal thermal sensor to adjust internal temperature. By virtue of the dustproof design, it dramatically increases product reliability in harsh environment.

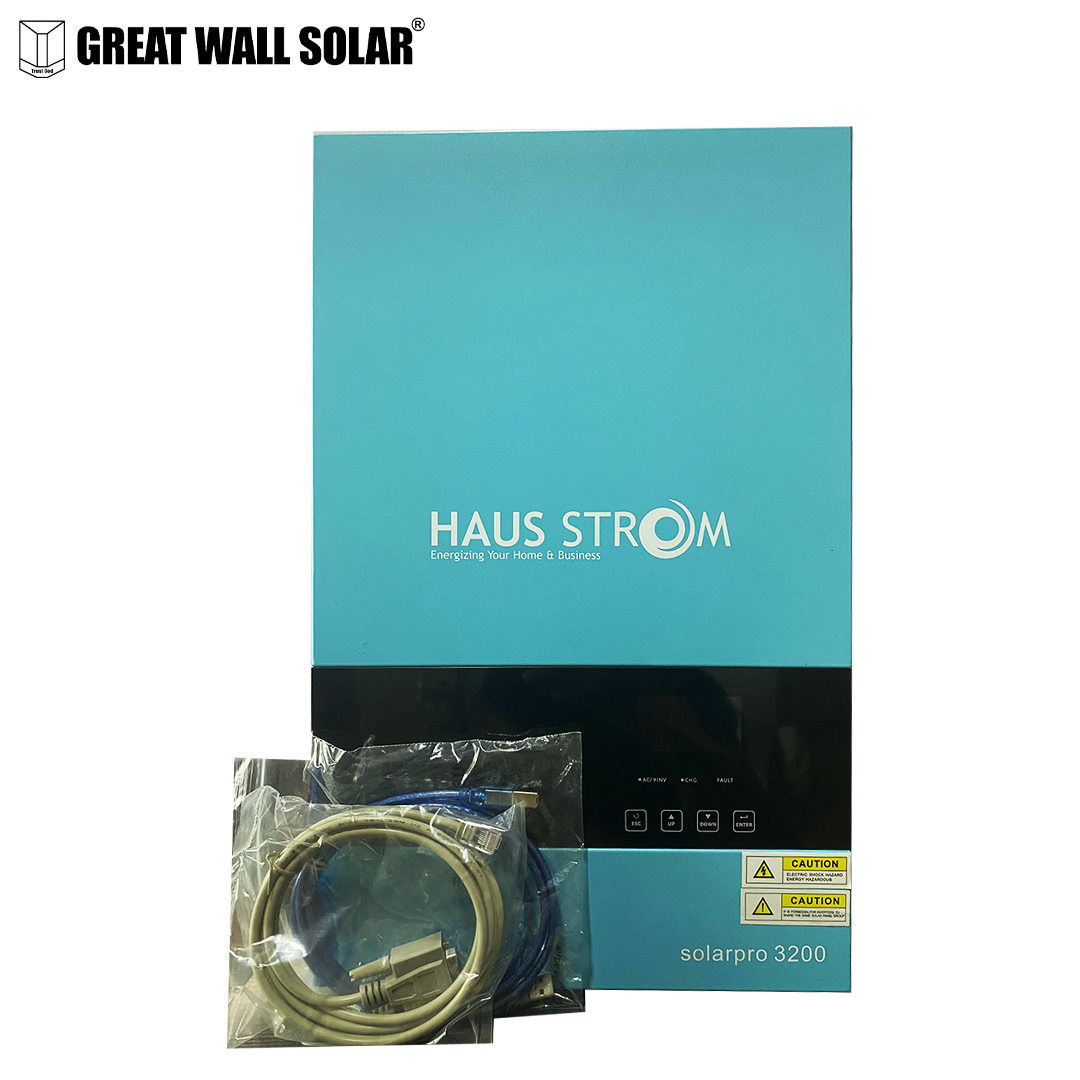

Solar Pro Series
Wall Mounted Integrated Solar Inverter Technical Specification
Built-in MPPT Solar Controller
Model | Solar Pro 3200-24 | Solar Pro 5500-48 |
---|---|---|
Rated Power | 3200VA/3200W | 5500VA/5500W |
INPUT | ||
Voltage | 230 VAC | |
Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) | |
Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
OUTPUT | ||
ACVoltage Regulation(Batt. Mode) | 230VAC ± 5% | |
Surge Power | 6000VA | 11000VA |
Efficiency (Peak) | up to 93.5% | |
Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) | |
Waveform | Pure sine wave | |
BATTERY | ||
Battery Voltage | 24 VDC | 48 VDC |
Floating Charge Voltage | 27 VDC | 54 VDC |
Overcharge Protection | 33 VDC | 63 VDC |
SOLAR CHARGER & AC CHARGER | ||
Maximum PV Array Open Circuit Voltage | 500 VDC | 500 VDC |
Maximum PV Array Power | 5500 W | 5500 W |
MPPT Range @ Operating Voltage | 120-450 VDC | 120-450 VDC |
Maximum Solar Charge Current | 100A | 100A |
Maximum AC Charge Current | 80 A | 80 A |
Maximum Charge Current | 100A | 100A |
PHYSICAL | ||
Dimension, DxWxH (mm) | 100 x 300 x 440 | |
Net Weight (kgs) | 9 | 10 |
Communication Interface | USB/RS232 | |
ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humidity (Non-condensing) | |
Operating Temperature | -10°C to 50°C | |
Storage Temperature | -15°C to 60°C | |
SPECIAL FUNCTION | ||
Supports lithium battery BMS communication |
Key Features:
- Pure sine wave solar inverter
- Output power factor 1
- Parallel operation up to 9 units
- High PV input voltage range
- Battery independent design
- Built-in 100A MPPT solar charger
- Battery equalization function to optimize battery performance and extend cyclelife.
- Built-in anti-dusk kit for harsh environment
